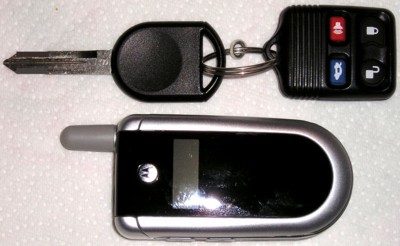

Figure 1. Mobile Phone in Proximity to a Car Key
Abstract: Cases of circuit
failures caused by mobile, or cell, phones are starting to be reported.
A brief overview of the problem is given followed by a simple test
procedure to gauge the risk to a product.
Discussion: In my consulting
work, I see a lot of operational problems in systems, but I have
noticed a new kind of problem caused by mobile phones. Recently, a news
article appeared in many news outlets about an electronic car key that
was destroyed by being in proximity to a mobile phone when the phone
rang. One of my clients recently had a similar problem with a small
product that resembled an mp3 music player. So what is happening?
Figure 1 shows a car key in proximity to a mobile phone. Although the key above is from an extensively modified 2006 Ford Mustang (a really fun car), the problem in the news story was not with any Ford product, but another company that manufactures automobiles. A factor in common with the small mp3 player like product and many car keys is that the circuit board and/or metal part of the product is about six cm in length, about 1/2 wavelength at the upper mobile phone frequency band in the US, 1850 MHz.
Figure 1 shows a car key in proximity to a mobile phone. Although the key above is from an extensively modified 2006 Ford Mustang (a really fun car), the problem in the news story was not with any Ford product, but another company that manufactures automobiles. A factor in common with the small mp3 player like product and many car keys is that the circuit board and/or metal part of the product is about six cm in length, about 1/2 wavelength at the upper mobile phone frequency band in the US, 1850 MHz.
When such a product is very close to
a mobile phone operating in its upper frequency band and at its high power level (about 600 mW) significant
currents can be induced into the product. This is because it is resonant near
the operating frequency of the mobile phone. Enough current can be induced to permanently damage the circuit in some cases.
In the car key case, when the key was in a pocket with a mobile phone
and the phone became active, the electronic circuit in the key could be damaged.
Although the key would still open the door, it would not start the car
as a result of the damaged circuitry in the key.
Even if the circuit is not damaged, temporary operational malfunction can occur. I have observed this in a number of automotive and other devices.
In my February 2006 Technical Tidbit, Construction of a Coaxial Antenna for Troubleshooting, a small homemade antenna and method is described for subjecting a small product to an approximation of the very near field of a mobile phone. If your product has an electrical length of about 6 cm (upper mobile phone band) or about 12 cm (lower mobile phone band), I would highly recommend testing it with the simple procedure outlined in that February 2006 Technical Tidbit.
Even for products of other sizes that may be in close proximity to a mobile phone, I would recommend looking for resonances using the method in my June 2006 Technical Tidbit, Measuring Structural Resonances. If a resonance is found in one of the mobile phone bands, then go on to test the product with the method in the February 2006 Technical Tidbit. Even if no resonance is found in the mobile phone frequency bands, testing the device for response to nearby mobile phones may be the safest course of action.
Even if the circuit is not damaged, temporary operational malfunction can occur. I have observed this in a number of automotive and other devices.
In my February 2006 Technical Tidbit, Construction of a Coaxial Antenna for Troubleshooting, a small homemade antenna and method is described for subjecting a small product to an approximation of the very near field of a mobile phone. If your product has an electrical length of about 6 cm (upper mobile phone band) or about 12 cm (lower mobile phone band), I would highly recommend testing it with the simple procedure outlined in that February 2006 Technical Tidbit.
Even for products of other sizes that may be in close proximity to a mobile phone, I would recommend looking for resonances using the method in my June 2006 Technical Tidbit, Measuring Structural Resonances. If a resonance is found in one of the mobile phone bands, then go on to test the product with the method in the February 2006 Technical Tidbit. Even if no resonance is found in the mobile phone frequency bands, testing the device for response to nearby mobile phones may be the safest course of action.
Summary:
Mobile, or cell, phones have been causing some interesting problems
lately. Two examples were given and a quick test involving a
homemade antenna was discussed. Given the large number of mobile
phones around these days, spending a little time on the testing
outlined in this article can save a lot of headaches after product
introduction.
